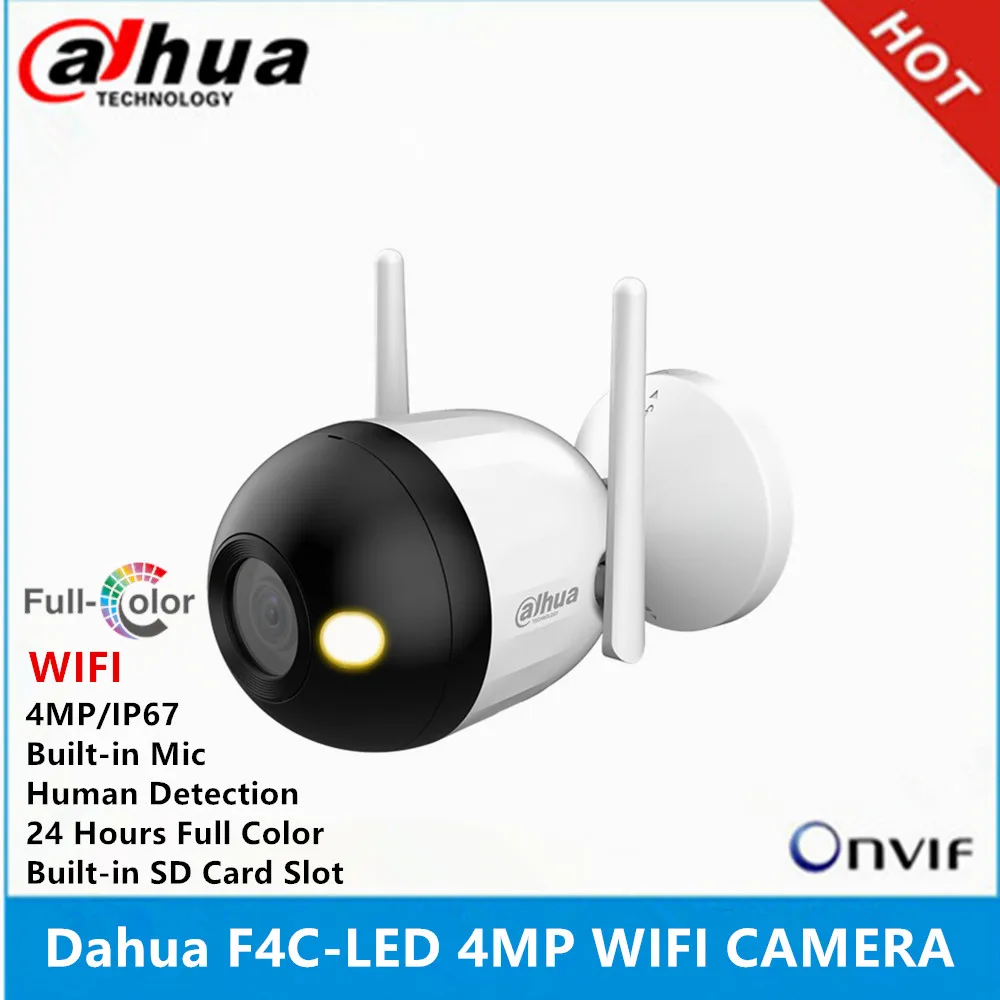

Dahua F4C-LED 4MP Full-color built-in Mic human detection Network WIFI Camera

Dahua F4C-LED 4MP Full-color built-in Mic human detection Network WIFI Camera

Original price was: ₨ 11,499.Current price is: ₨ 10,929.

- +
Category:
  • AI Functions: Human Detection
  • IP Rating: IP67
  • Scene: Indoor and outdoor
  • Megapixels: 4MP
  • TF Card: None
  • Power Supply: Normal
  • Storage: 256GB
  • Installation: Normal
  • Audio Output: None
  • Video Compression Format: H.264,H.265
  • Dimensions (L x W x D)(mm): 131.0 X 78.4 X 97.2 mm
  • Power Supply(V): DC12V ,2A
  • Alarm Action: telefon Alarm
  • Power Consumption(W): 5.4W
  • Supported Mobile Systems: Symbian,Windows Mobile,Android,IOS
  • Special Features: Waterproof / Weatherproof
  • Sensor: CMOS
  • Model Number: F4C-LED
  • Supported Operating Systems: Windows XP,Windows Vista,Windows 7,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
  • Lens (mm): 2.8mm
  • Connectivity: IP/Network Wireless
  • High Definition: 4.0 Megapixels
  • Style: Dome Camera
  • Brand Name: Dahua
  • Origin: Mainland China
  • Certification: CE,FCC,UL
  • Smart home platform: none
Camera
Image Sensor 1/3″ CMOS
Max. Resolution 2560 (H) × 1440 (V)
ROM 16 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6(B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 30 m (98.53 ft) (Warm light)
Illuminator On/Off Control Auto
Illuminator Number 2 (Warm light)
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm;3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: H: 98°; V: 55°; D: 115°
3.6 mm: H: 78°; V: 41°; D: 94°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1 m (3.28 ft)
3.6 mm: 1.7 m (5.58 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 61.2 m

(200.78 ft)

 24.5 m

(80.38 ft)

 12.2 m

(40.03 ft)

 6.1 m

(20.01 ft)
3.6 mm 85.4 m

(280.18 ft)

 34.2 m

(112.20 ft)

 17.1 m

(56.10 ft)

 8.5 m

(27.89 ft)
Intelligence
Human Detection Support the classification and accurate detection of human
Video
Video Compression H.264B; H.264; H.264H; H.265
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 2560 × 1440@(1–25/30 fps);
sub stream: 640 × 480@(1–25/30 fps);
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–4096 kbps;
H.265: 12 kbps–4096 kbps
Day/Night Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/180°
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; abnormal audio input; intensity change; SMD (human)
Network
Network Port RJ-45 (10/100 Base-T)
Wi-Fi IEEE 802.11b/g/n 2.4–2.4835 GHz, 2.4 G
SDK and API Yes
Network Protocol IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP; P2P
Interoperability ONVIF (Profile S/Profile G); CGI
User/Host 20 (Total bandwidth: 64 M)
Storage Micro SD card (support max. 256 GB)
Browser IE; Chrome; Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS;Android
Cyber Security Configuration encryption; trusted execution; Digest; security logs; HTTPS; trusted upgrade; WSSE; trusted boot; account lockout; generation and importing of X.509 certification; video encryption
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU
Power
Power Supply 12 VDC
Power Consumption Basic: 2.2 W (12 VDC);
Max. (H.265+warm light intensity): 5.4 W (12 VDC)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95%
Storage Temperature –30 °C to +60 °C (-22°F to +140°F)
Storage Humidity ≤95%
Protection IP67
Structure
Casing Material Metal + plastic
Product Dimensions 131.0 mm × 78.4 mm × 97.2 mm (5.47″ ×4.80″ × 3.83″) (L × W × H)
Net Weight 254.5 g (0.56 lb)
Gross Weight 503 g (1.11 lb)
